AML Plus™
Find Buried PVC/PE Pipes Using Advanced Ultra High Radio Frequency.
Find Buried PVC/PE Pipes Using Advanced Ultra High Radio Frequency.

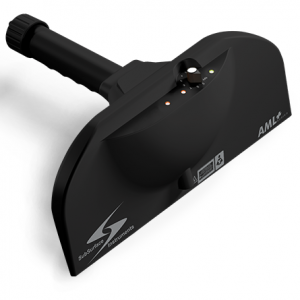

The All-New AML Plus™ is a scientific instrument that utilizes ultra-high radio frequencies to find differences in densities. This offers the best method for locating PVC & PE Pipes and nearly any other object that has an edge.
- New Microprocessor Intelligence
- Patented Radio Wave Technology
- Lightweight Construction (2 lbs.)
- High-Quality Headphones
- Rechargeable Lithium Battery
- Durable ABS Housing

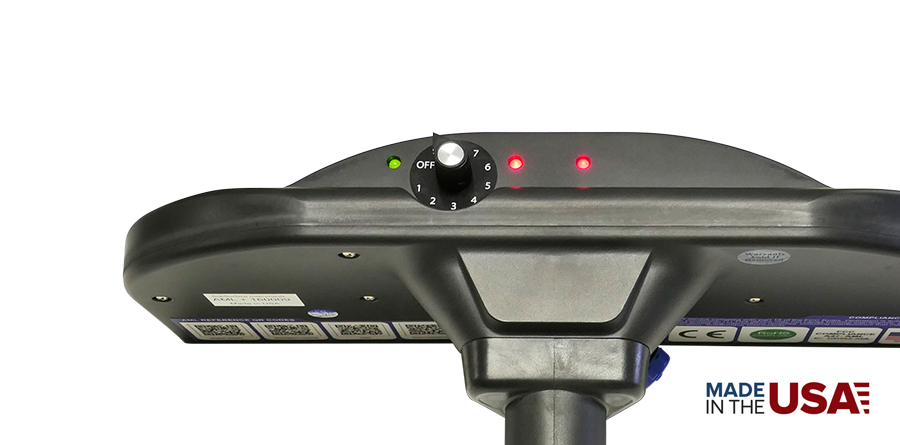

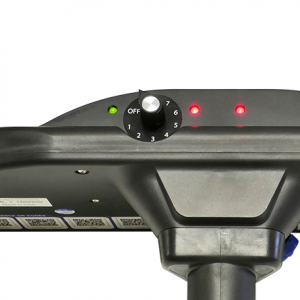

- 9 Sensitivity Settings
- 3 Year Limited Warranty
- USB Powered Port
SSI strongly encourages new operators to attend a factory training session in Green Bay, WI in order to fully understand the AML’s capabilities, limitations, and to learn and practice various operating techniques.
Key Features
Laser Target Indicator
An easy-to-see laser indicator highlights the located object's position on the ground when it has been detected.

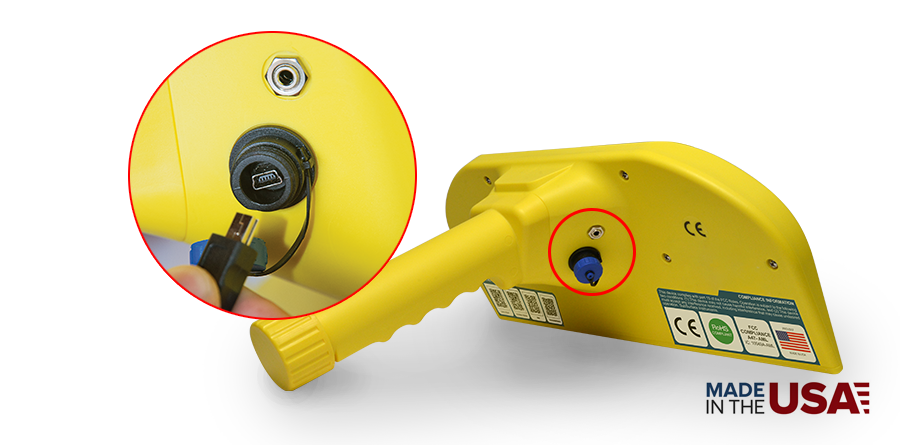

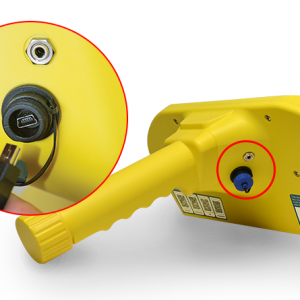

USB Port
Powerful USB flexibility allows users to export GPS coordinates, import the latest firmware updates and connect to the auxiliary lithium battery source

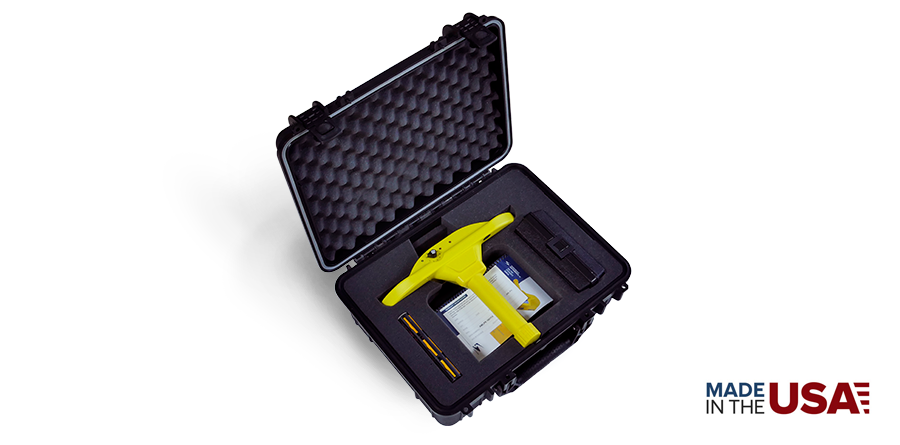

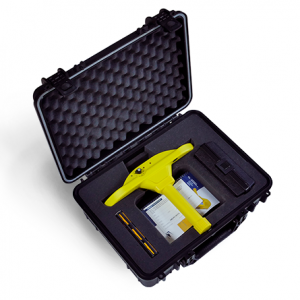

Carrying Case
The AML is a highly technical scientific instrument. To protect it, an impact resistant and water proof carrying case with a shock-absorbant foam housing protects your AML while in transit or on the job site.

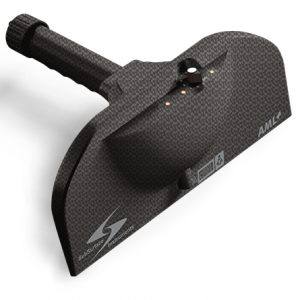

Lightweight
The AML is constructed from lightweight, shock-resistant materials that make it easy to use and handle throughout the work day.

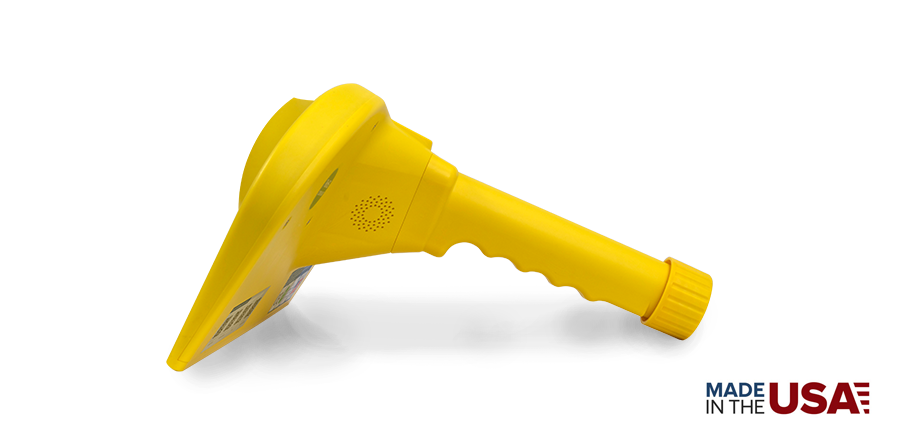

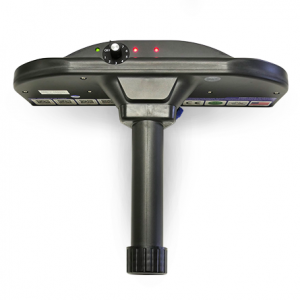

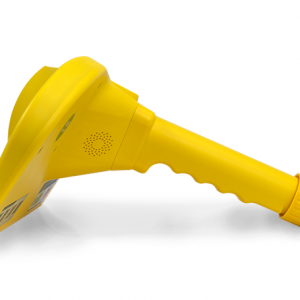

Ergonomic Handle
The AML PRO handle is designed to provide the user with a comfortable grip in any weather condition, ensuring an accurate reading when the fingers are placed along the knurls.
Headphone Jack
A convenient headphone jack allows the user to listen to audio signals with premium noise isolating headphones (included).
HOW DOES IT WORK?
TECHNICAL SPECIFICATIONS
WARRANTY
DEMONSTRATIONS
TRAINING
HOW DOES IT WORK?
UNDERSTANDING ULTRA-HIGH FREQUENCY RADIO WAVES
The key to how the AML detects PVC/PE pipes and to identifying the size or length of a pipe is to understand how its radio frequency detects buried plastic and other objects.
Holding the AML’s handle parallel to the ground, scan the area of the suspected pipe or buried object until one or both of the AML’s target indicators activate.
While the left or right target indicator is activated, rotate the AML until both LED target indicators light simultaneously, triggering the AML’s tone and laser marker. This alert indicates that the pipe or object has been detected and that the AML is now parallel with the underground object.
With the AML in parallel with the pipe or underground object, you can now scan the entire length of the object’s edge. As an alternative, utilize the “W” method of scanning by sweeping the area in a back-and-forth “W” motion, marking the object’s location and run direction as it is tracked.
TECHNICAL SPECIFICATIONS
| Physical Dimensions | AML PRO | AML + |
|---|---|---|
| Height | 13 in. / 33.0cm | 11 in. / 27.9cm |
| Length | 14 in. / 35.6cm | 14 in. / 35.6cm |
| Width | 6 in. / 15.2cm | 6 in. / 15.2cm |
| Weight | 2.5 lbs. / 1.13kg | 2 lbs. / 0.90kg |
| Power Specifications | ||
|---|---|---|
| Batteries | (3) 9-Volt Alkalines | (3) 9-Volt Alkalines |
| Battery Packs | 2 | 1 |
| Est. Alkaline Battery Life | 25 hours | 40 hours |
| min. life: 4 hours | min. life: 5 hours | |
| Auxiliary Lithium Battery Packs | typical life: 80 hours | typical life: 100 hours |
| min. life: 20+ hours | min. life: 25+ hours | |
| Transmitter Frequency | 2.45 GHz | 2.45 GHz |
| Shipping Dimensions | AML PRO | AML + |
|---|---|---|
| Weight | 17 lbs /7.7 kg | 17 lbs /7.7 kg |
| Box Dimensions | 20″ Long x 17″ Wide x 8″ Height | 20″ Long x 17″ Wide x 8″ Height |
| 50.8 cm L. x 43.2 cm W x 20.3 cm H | 50.8 cm L. x 43.2 cm W x 20.3 cm H |
WARRANTY
Warranty & Repair
The AML is guaranteed to be free of defects in material and workmanship for a period of 3 years or 36 months to the original end-user purchaser. Physical abuse, battery acid, and water damage, as determined at the sole discretion of SubSurface Instruments Inc., are explicitly and entirely excluded from this warranty. SubSurface Instruments’ Liability under this warranty is limited to repair, service, or replacement of the product, at the sole discretion of SubSurface Instruments Inc. No other warranty is expressed or implied.
Any unit suspected to be in need of repair or retuning may be returned to SubSurface Instruments Inc. The customer is responsible for freight to the manufacturer. SubSurface Instruments will pay for freight back to customers located within the continental US.

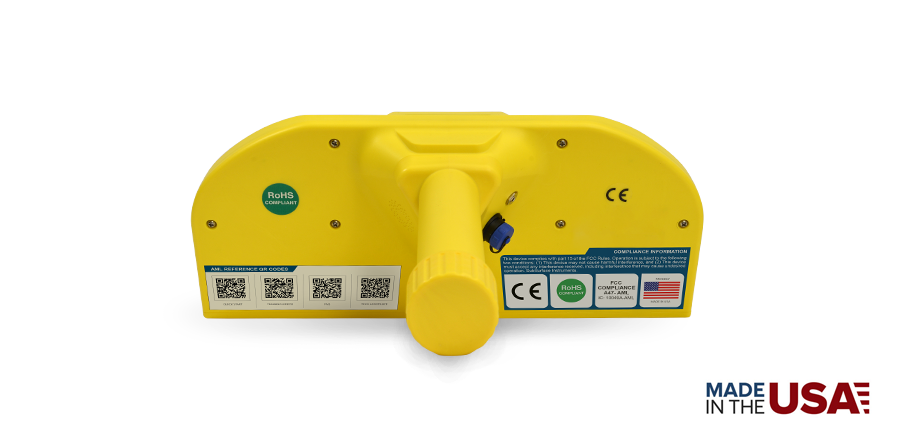

Compliance Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. SubSurface Instruments, Inc.
CE – Certified
RoHS – Compliant
FCC – Compliant A47-AML IC: 10049A-AML
DEMONSTRATIONS
This video tutorial will guide you step by step through the proper operating procedure of your AML – All Materials Locator. Upon completing this video, you will be able to verify that buried PVC pipes are located and identified with certainty.
User Guide
Change in densities
SEnsitivity Levels
TRAINING
Factory Training Agenda
SSI strongly encourages new operators to attend a factory training session in Green Bay, WI in order to fully understand the AML’s capabilities, limitations, and to learn and practice various operating techniques. Below is the agenda for the topics to be covered and their durations. Class format and/or focus can be customized for the client.
SSI offers 2 training credits for 2 trainees with the purchase of each of our AML units. Although, we cover the expenses for the training once you arrive to our facilities (Hotel, Transportation and Meals) your are responsible to get to and from our facilities located in Green Bay, Wisconsin.
CLASSROOM INSTRUCTION (6.5 HOURS)
A short introductory session that explains how the unit works.
- Instrumentation
- Theory of Operation
- Controlled Environment Location
- Capabilities and Limitations
- Techniques
FIELD DEMONSTRATION (4-7 HOURS)
A practical application that teaches how to locate various targets (pvc pipe, gas, sewer, water, power, cable, rubber, fiber optics, etc.)
- Marked Sites
- Unmarked Sites
- Direction
- Soil Conditions
