IC-6

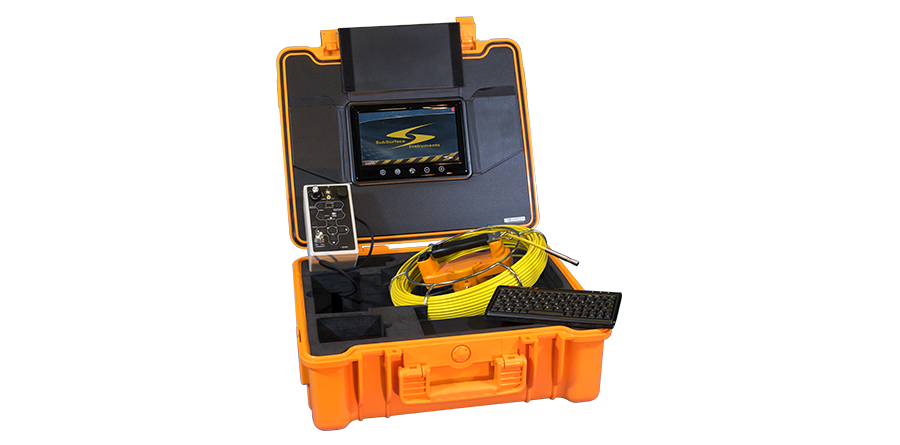

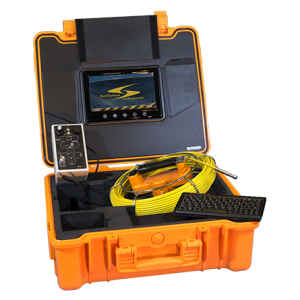

Lightweight, high-quality video, Small Pipes Inspection Camera System

Description

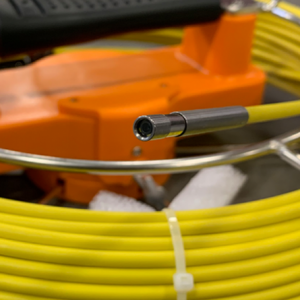

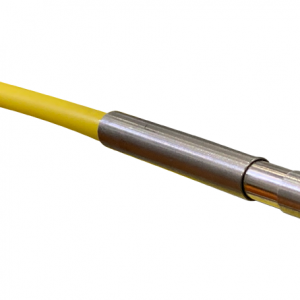

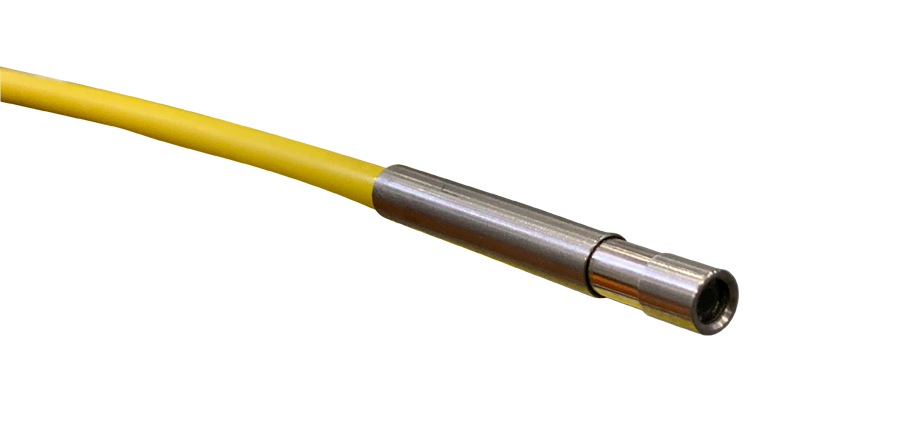

The IC-6 Pipe Inspection Camera System features a 6mm camera, mounted on a rugged stainless steel IP68 certified enclosure and displays a 60º view angle with excellent quality video and sharp images.

The 4 pcs LEDs mounted on the front of the camera provide illumination for inspection, or for creating the perfect conditions to snap a photo or create a video to show the results to your clients.

Designed for small pipes and conduits, the IC-6 enclosure has a very small profile, allowing it to navigate smoothly inside of the pipe.

Install the skid on the head of the camera to improve visibility as well as to protect the camera from sharp corners and other objects inside of the pipes you are inspecting.

Save time and money by inspecting your projects before starting the excavation process, eliminate costly damages, and save time by finding the location of the problem in an easy and accurate way.

Key Features

  • 9″ monitor (image reversible)
  • 6mm camera
  • 4 LED light
  • Picture snap & movie record
  • Rechargeable Li-ion Battery
  • Customizable User Preferences
  • SD card port
  • ø12mm skid
  • HD resolution
  • Battery level display
  • Lightweight reel
  • Carrying Case

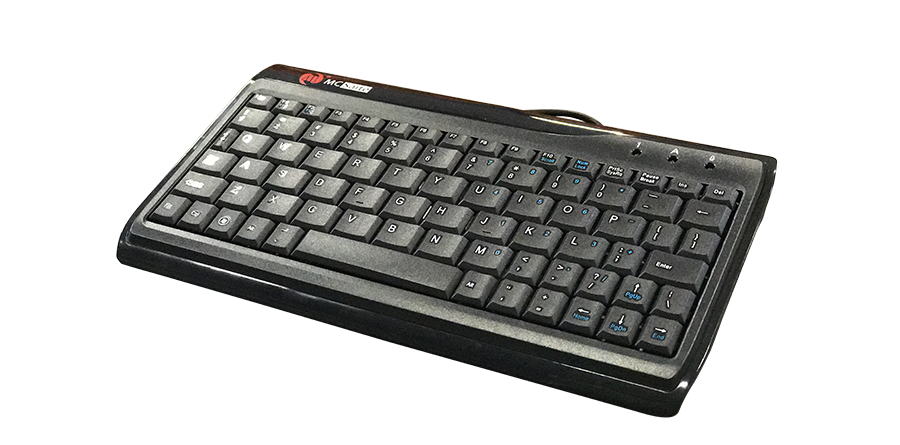

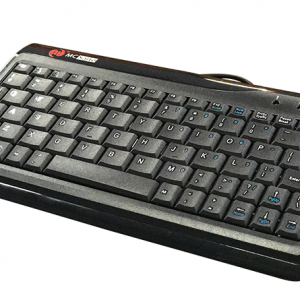

  • Standard US Keyboard
  • 1 Year Limited Warranty

Additional information

Camera Head Camera Size

Ø6mm

Camera Head Sensor Size

1/12 inch

Camera Head View Angle

60°

Camera Head Work Current/Power

DC12V

Camera Head Camera Light

4 PCS white LEDS

Camera Head Resolution

PAL: 720 X 576
NTSC: 720 X 480

Camera Head Glass Material

Sapphire glass

Camera Head Shell Material

Stainless steel

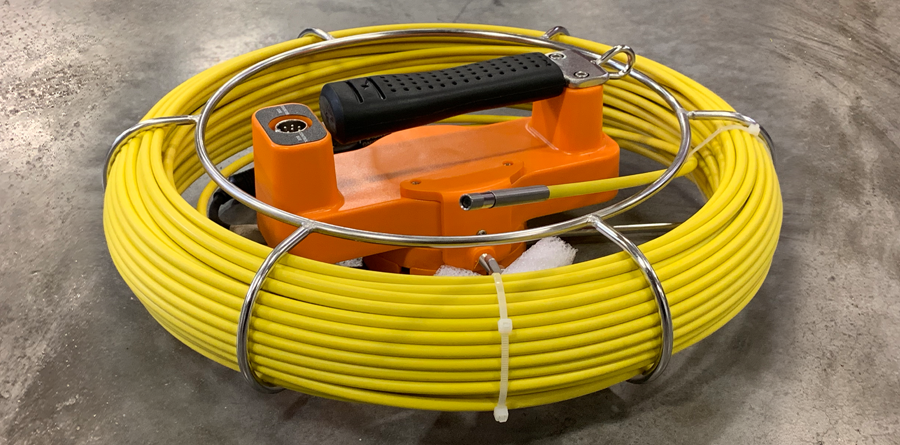

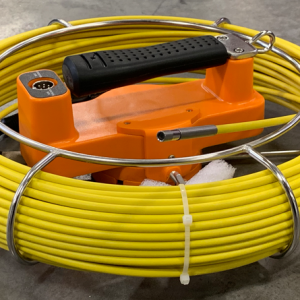

Cable Wheel Cable Size

Ø320mm X 110(h)

Cable Wheel Wire Material

Fiberglass rod

Cable Wheel Wire Length

40 meters

Cable Wheel Wire Diameter

Ø5.0mm

Monitor Size

9 inch digital color

Monitor Total Pixels

800 X 480

Monitor Work Current/Supply

DC12V

Monitor OSD Language

English

Monitor Ratio

16:9 and 4:3

Lithium-Ion Battery Total Power

4400MAH

Lithium-Ion Battery Charge Time

5 hours

Lithium-Ion Battery Protective Voltage

12.6V

Lithium-Ion Battery Work TIme

≥ 420 minutes

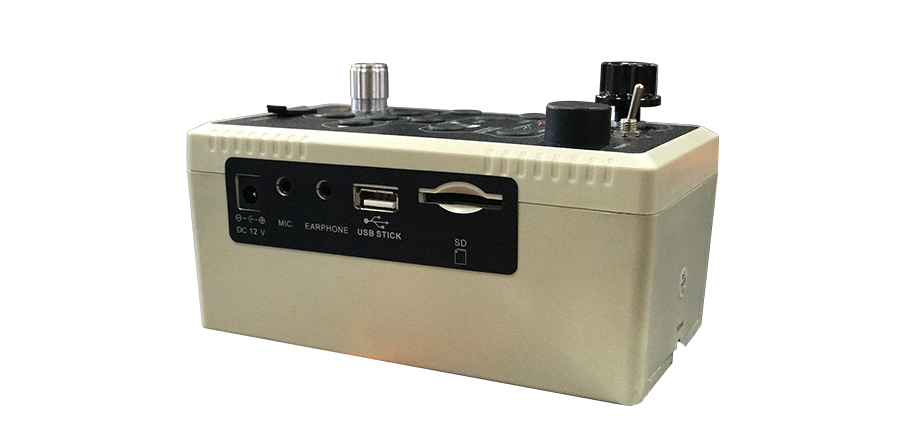

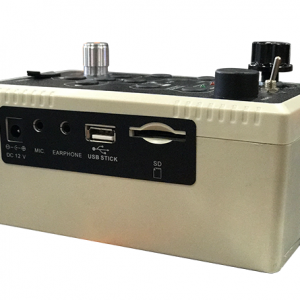

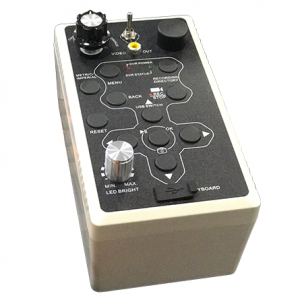

Control Box Power Supply

12V

Control Box Work Current

150MA

Control Box Storage Medium

8G SD card (max 256G) / SD card reader

Control Box DVR Total Pixels

720 X 576 (D1)

Control Box Movie Format

mp4

Skid

Ø12mm

Charger Input

AC100-240V – 50/60Hz

Charger Output

DC 12V/1000MA

Charger DC Plug Diameter

2.1mm

Keyboard Size

220(L) X 118(W) X 18(H)mm

Suitcase Size

520(L) X 435(W) X 200(H)mm

Suitcase Material

Engineering plastics
