LD-7

Compact, easy-to-use Water Leak Detector that fits in the palm of your hand.

Description

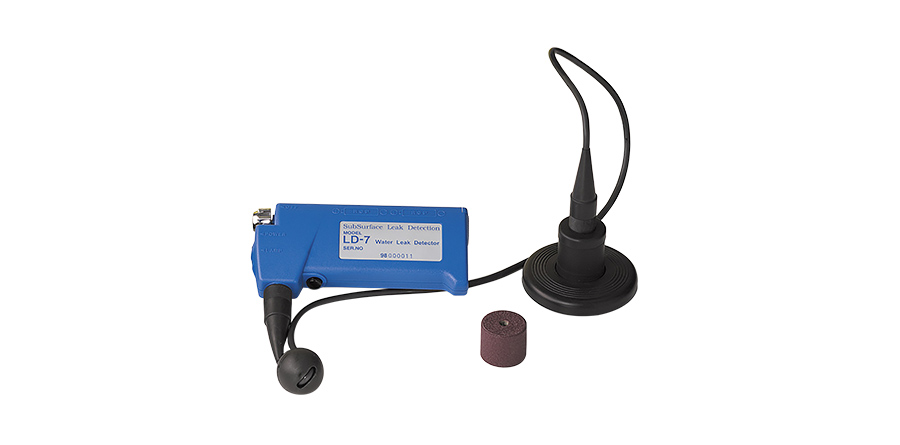

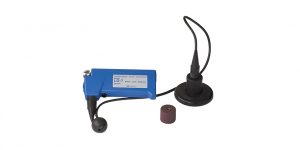

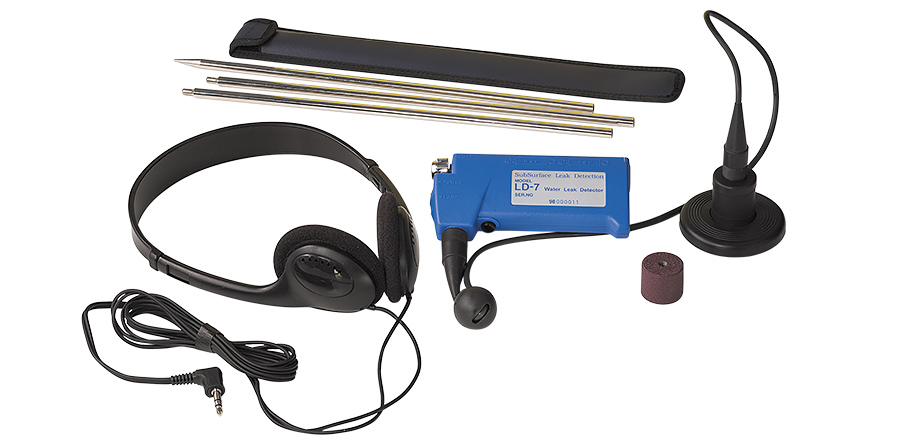

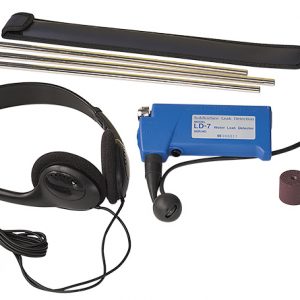

The LD-7 fits in the palm of your hand! It features a compact amplifier with a on/off (mute) switch to protect your hearing when moving the microphone sensor. Designed for all of the water leak detection applications, including leak surveys and leak pinpointing. Use the 3-point ground plate for pinpointing on streets and concrete slabs. Use the magnetic base or the contact rod for leak surveys at hydrants, valves or meters. Extremely compact and lightweight, the LD-7 measures 14x10x6 inches, small enough to be stored behind the seat of your truck.

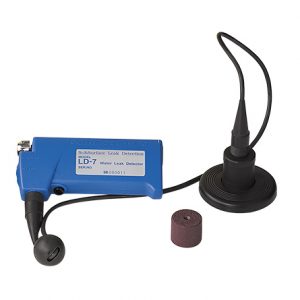

Compact amplifier with mute switch, fits inside the user’s hand.

Designed for all the water leak detection applications, including leak surveys and leak pinpointing.

Extremely compact and lightweight. Easily fits inside the cab of a truck.

Key Features

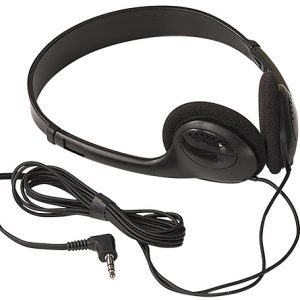

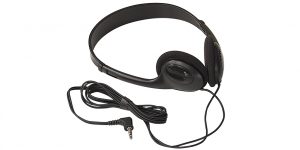

  • Compact amplifier (with mute switch) fits inside the palm of the user’s hand. Press the mute switch (on/off) to activate the leak sounds in the headphones, and then release the mute switch when moving the sensor (protects your hearing!).

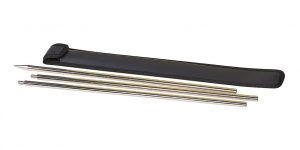

  • Designed for all of the water leak detection applications, including leak surveys and leak pinpointing. Use the 3-point ground plate for pinpointing on streets and concrete slabs. Use the magnet base or the contact rod for leak surveys at hydrants, valves, or meters.
  • Extremely compact and lightweight. The entire LD-7 inside its heavy duty carrying case measures only 14 inches x 10 inches x 6 inches, small enough to be stored behind the seat inside the cab of the truck.

Additional information

Amplifier Size

5.7" x 1.25" x 3" (14.5 cm x 3.3 cm x 6.8 cm)

Amplifier Weight

8.0 lb. (3.6 kg)

Amplifier Input Power

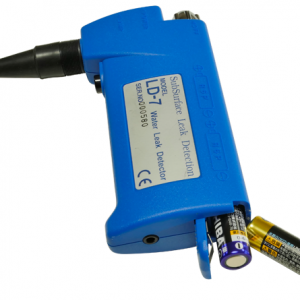

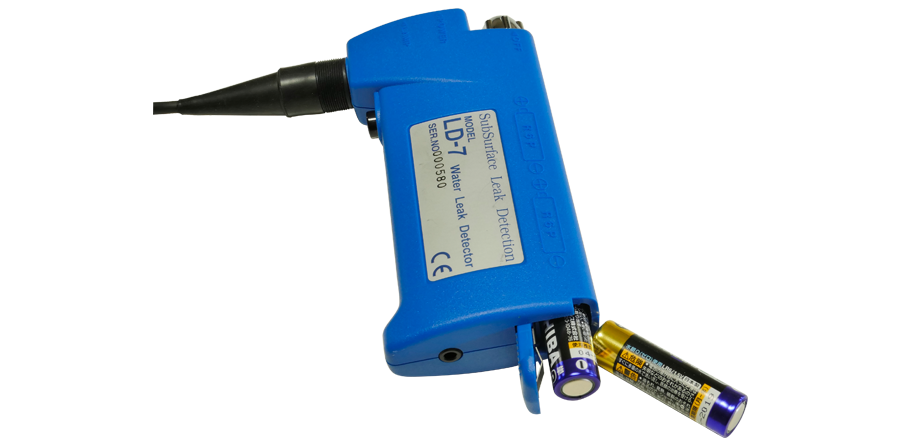

Two (2) AA dry cell batteries (1.5 V x 2)

Amplifier Battery Life

30 Hours

Amplifier Frequency Range

100Hz to 1500Hz

Amplifier Power Consumption

20 mA Nominal (30-hour life)

Amplifier Input Impedance

430k ohm ±/- 1%

Amplifier Output Impedance

4-10 ohm

Amplifier Amplification

56 dB±/- 3%

Amplifier Warranty

4 Years

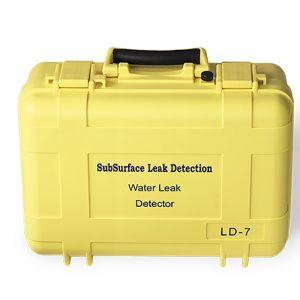

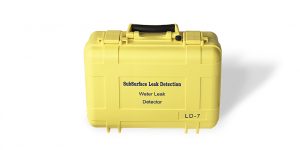

ABS Carrying Case Size

14" x 10.5" x 6" (35.6 cm x 26.7 cm x 15.2 cm)

ABS Carrying Case Weight

5.84 lb. (2.65 Kg)

TECHNICAL SPECIFICATIONS

Additional information

Amplifier Size

5.7" x 1.25" x 3" (14.5 cm x 3.3 cm x 6.8 cm)

Amplifier Weight

8.0 lb. (3.6 kg)

Amplifier Input Power

Two (2) AA dry cell batteries (1.5 V x 2)

Amplifier Battery Life

30 Hours

Amplifier Frequency Range

100Hz to 1500Hz

Amplifier Power Consumption

20 mA Nominal (30-hour life)

Amplifier Input Impedance

430k ohm ±/- 1%

Amplifier Output Impedance

4-10 ohm

Amplifier Amplification

56 dB±/- 3%

Amplifier Warranty

4 Years

ABS Carrying Case Size

14" x 10.5" x 6" (35.6 cm x 26.7 cm x 15.2 cm)

ABS Carrying Case Weight

5.84 lb. (2.65 Kg)
